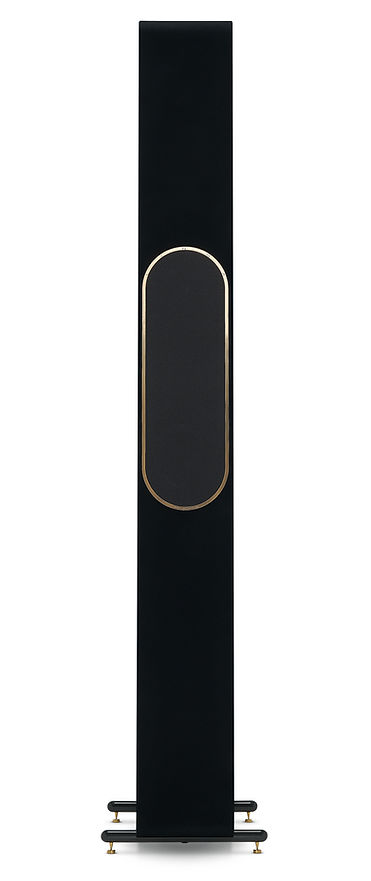

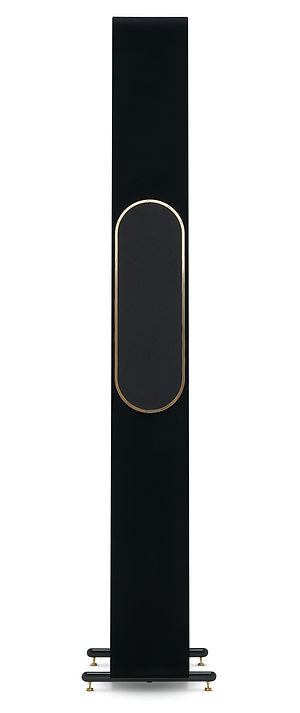

LINGA

This is Linga XCV– latest product from 8MM audiolab team .

True incarnation of live-like musicality, acoustic and design perfection.

LINGA speakers strike with majestic 2-meter tall cabinets allowed us to

achieve increased target sensitivity and accommodate much larger

listening rooms with substantial sound levels and minimum distortion. To

deliver the best listening experience, in addition to updated OS horn

waveguide, 10 ultra low distortion drivers, utmost precision passive crossover

network, customizable sound features for room adjustment and personal

taste have been added to the new series. LINGA speakers take our

minimalist approach to another level with more streamlined shapes, thin

lines and monochrome design. In combination with luxury ALCANTARA leather surface

creates outstanding visually striking cabinets giving the velvet feel not only

on the surface of the speakers but also in the sound they produce.

True incarnation of live-like musicality, acoustic and design perfection.

Ultimate stereo tower speaker.


More Precision

FEATURES

Untitled Capture0730.jpg

TRANSDUCERS

LINGA‘s 10 massive ultra low distortion speaker drivers deliver the most explosive transients in stride and reproduce them at blasting life-like levels or quietest whispers with flawless accuracy. Each selected driver incorporates highly advanced FEA optimized magnetic circuit with multiple shorting rings ensuring ultra low sound distortion. Each transducer is reassembled and adjusted in House to 8MM audiolab specs


CABINET

LINGA frame skeleton is crafted from the finest wood board finished with finest ALCANTARA Leather coating. Delivers astonishing luxury minimalist appearance, made to  impress and aesthetically merge in a variety of environments. 4-layer sandwich  damped sidewalls and up to 50mm thick front / back panels make sure vibrations  are kept down to minimum. Sidewall finish completed with multilayered Perfect Gloss panels boasting the highest scratch resistance, gloss and reflection levels.


VERTICAL OS WAVEGUIDE

For the finest high frequency reproduction, we have developed a minimal diffraction vertical OS waveguide. Machined deep in a wood board, it recreates exceptionally smooth and detailed treble frequencies. The precisely modeled waveguide shape broadens the ideal listening area with improved 3D imaging and clarity.  Waveguide is developed to avoid the unwanted horn reflections and keeping “horn HOM” effects to minimum.


NETWORK

Custom designed easy load impedance filter network ensures more precise filtering for lower driver unit distortion and better integration. Ultra purity copper, double baked coils and high precision premium grade capacitors and resistances are supplied by Mundorf. HF speaker driver is electrically attenuated and isolated using custom made Autotransformers.  The parts and accurate crossover slopes were carefully selected during countless hours of measure sweeps and ear tests to meet the highest sonic demands. All crossover components are connected using silver tinned copper wire and silver solder.Crossover has a sophisticated passive EQ, which allows to adjust Linga speaker response to any room.


LEGS and CONNECTION

Each speaker floats on massive 30mm thick steel bars supported by 4 adjustable spikes and thus Linga is completely isolated from the floor. The unique feet construction delivers more focused soundstage and clearer bass.

Ultra rigid and versatile MConnect silver tinned terminals from Mundorf preserve your amplifier damping factor and power delivery. Crossover components are connected directly to terminals and no signal losses take place inside the speaker.


                       SPECS

Available Finishes: Cheeks - Mirror Black / White; Leather Contour –  Black / White; Trims - Gold / Brushed Steel.

Usable frequency range: 25-20000 Hz

Power rating: 150 W (long term)

Sensitivity: 95 dB / 1W / 1M

Impedance: 8 ohm (4 ohm min)

Type: 3.5 - way ported

Drive units: double 12" woofers , Double 6.5" mid bass, 1” compression driver

Crossover frequency: 90, 180 & 2500 Hz

Terminals: MUNDORF MConnect, receives - fork cable lugs 6mm, fork cable lugs

8mm, 2x banana plugs 4mm, cable ends

Internal wiring: KIMBER

External Dimensions: 2000x580x230mm

Net Weight: 250kg / pair
